LPC SERIES - LOW PROFILE ADJUSTABLE DESKTOP SECURITY SYSTEMS

LPC II

RECOMMENDED BY POLICE & SECURITY CHIEFS

The AVDEX Lock works on every type of PC available, plus TV’s, VCR’s, and nearly anything else that can be slipped between two low profile parallel uprights.

Made of 1/8” and 3/16” steel plate and standing only 5” high, the AVDEX Computer Lock secures your PC or other valuable office equipment in a way that makes it nearly impossible to steal. The AVDEX lock is unobtrusive and aesthetically attractive. It does not detract from the clean and professional appearance of your equipment.

TECHNICAL SPECIFICATIONS
MATERIALS:

BASE PLATE: 1/8” Steel Plate
END PLATES: 3/16” Steel
ADHESIVE: High Density Rubber Base Polymer
TENSILE STRENGTH 90 lbs./sq.in.
SHEER STRENGTH 120 lbs./sq.in.
SHEER STRENGTH side plates 2,800 lbs.
TENSILE STRENGTH 13” base plate 4,680 lbs.
TENSILE STRENGTH 16” base plate 5,760 lbs.
TENSILE STRENGTH 19.5” base plate 7,020 lbs.

PAINT: Color and finish match the most popular PC’s on the market today.

LOCK: Proprietary High Security Double Bolt AVDEX Lock Cylinder available random keyed, keyed alike, keyed alike with master.

DIMENSIONS: LPC II & LPC III

BASE PLATES: 4”X11”, 4”X13”, 4”X16”, 4”X19 1/2”, 4”X31”, (other sizes available).

LPC II BRACKETS: 4” WIDE X 4” HIGH

LPC II SIDE PLATES: 4” WIDE X 4” HIGH

The LPCIII system is designed so that it can be reused when you update your computer system. Can also be combined with a variety of cables to secure ancillary units. This unit is designed to be secured directly to the desktop, or it can be mounted out of the way on the side of the desk. If you do not wish to drill through the desktop, the LPC III can be secured under the desk using our heavy duty 5/16” cable available in lengths from 2 to 5’. Other mounting options available.

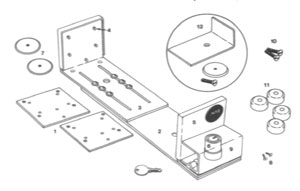

LPC II Components

LPC III Dual Adjustable low profile locking system for computers. The LPC III Brackets adjust vertically and horizontally. This unit offers maximum security and maximum flexibility.

View of LPC Series Lock and Lock Guard When Secured
